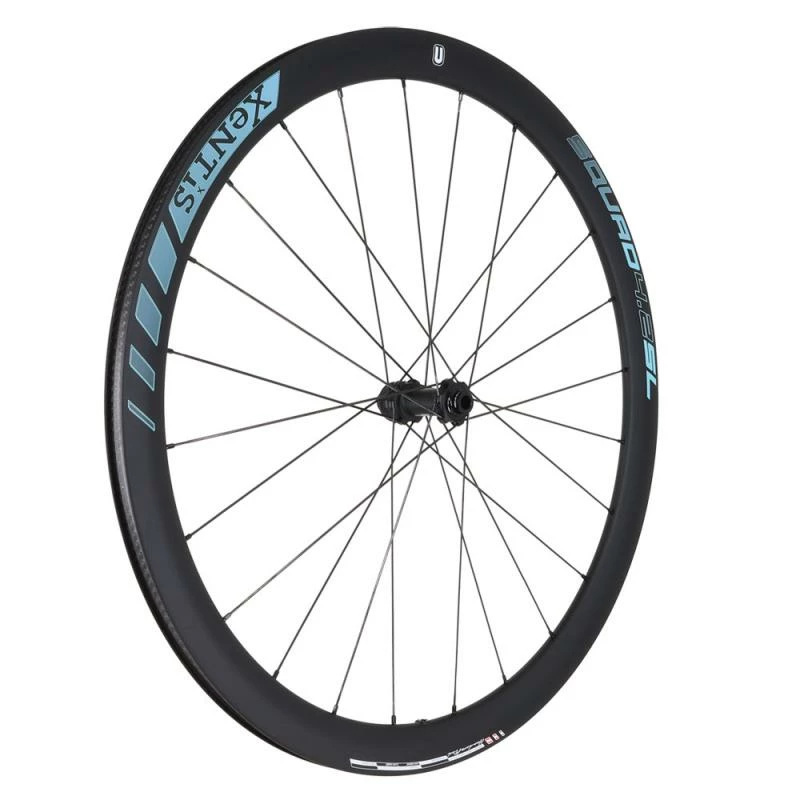

Xentis Squad 4.2 SL Disc Brake 2023.

Before ordering, please contact us for availability.

Thanks.

Delivery time: 2-4 weeks after the order.

Image for demonstration purposes only.

The lightweight wheel set SQUAD 4.2 SL DB is a high-end product for ambitious hobby as well as professional cyclists and combines the advantages of an aerodynamic high-profile rim with the lightness of a climbing wheel set.

Symbolic picture: For illustrative purposes the product is shown in another color or variation.

Super Light

XeNTiS claims to set new standards. Many years of expertise in dealing with carbon flows into the largely hand crafted production lines. Essential are also the experiences of successful athletes as they are the drive behind the permanent development of XeNTiS wheels and components.

XBP:

The patented brake surface guarantees the best brake performance in wet and dry conditions No wear-out on the brake surface.

ACTIVE TURBULATOR:

Improved aerodynamics trough a wave like structure on the rim

RFID:

The wheels are 100% hand made in Austria All wheels are fitted with a unique RFID chip that allow exact information to be traced and extracted such as origin and manufacturing specifications.

UV-protection:

XeNTiS Squad SL and monocoque wheels are coated and therefore UV protected.

Integrated magnet:

XeNTiS wheels are harmonically balanced and feature an integrated tachometer magnet. (No tachometer magnet in RACE 2 5 and SL 2 5)

Offset holes:

Due to the XeNTiS offset holes inside the rim, the durability of XeNTiS wheels is very high These holes guarantee an optimal and durable power transfer and this process prevents penetration of water into the rim.

TUBELESS READY:

Due to the TUBELESS READY system all XeNTiS clincher wheels are ridable without an inner tube Because of the special rim base the tyre fits exactly to the rim flange This application guarantees a significant increase in puncture protection and riding comfort.

Technical Data

model

SQUAD SL 4.2 (disc brake)

Design

MATT BLACK / Mattblack -White

carbon fiber

UD-Carbon

dimension rim

622x18C tubeless ready

tyres

clincher 23-40mm

tyre inflation pressure

8,8 bar (23-622) /127 psi in (23-622)

7,5 bar (25-622) /108 psi in (25-622)

7,0 bar (26-622) /101 psi in (26-622)

6,0 bar (28-622) /87 psi in (28-622)

5,0 bar (30-622) / 72 psi in (30-622)

4,5 bar (33-622) / 65 psi in (33-622)

3,5 bar (40-622) / 50 psi in (40-622)

total weight [g]
1299

max. recommended rider weight incl. Equipment [kg]
110

accessories

XeNTiS warranty card, XeNTiS wheelbag, XeNTiS rim tape

front wheel

rim depth [mm]
42-ASYMMETRIC PROFILE

rim width [mm]
26

speedometer magnet

front hub

XeNTiS XH004, 12-100mm, Center Lock®

built in width hub [mm]
100

spokes count

24

spoke

Sapim CX-Ray SP

spoke-nipple system

DT Squorx

spoke lenght [mm]
269

Surface (UV protection)

matt

recommended valve length [mm]
50

–

rear wheel

rim depth [mm]
42-ASYMMETRIC PROFILE

rim width [mm]
26

speedometer magnet

rear hub

XeNTiS XH004, X12-142mm, Center Lock®

compatibility

Campagnolo 11/12-Speed

Shimano / SRAM 10/11-Speed

SRAM XDR 12-Speed

built in width hub [mm]
142

spokes count

24

spoke

Sapim CX-Ray SP

spoke-nipple system

DT Squorx

spoke lenght right [mm]
278

spoke lenght left [mm]
278

surface (UV protection)

matt

recommended valve length [mm]
50
