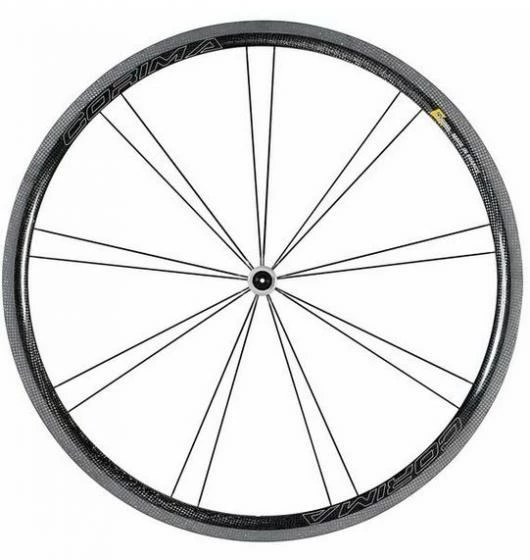

Corima WS+ 32mm Clincher Rim Brake 2021

Delivery time : considering the high demand for this article, we kindly ask you to send an email to:

[email protected]

Technical Data :

622x16c clincher pair

Shimano / SRAM

Profile : 32MM

Rim width : 26mm

Axle : Quick release 135mm

Weight front : 595 g

Weight rear : 795 g

Carbon weave : 3K

Front Spokes : 18

Rear Spokes : 20

Shipped with:

Pair of brake pads

Rim tape

Protection wheelbag

Spoke wrench

Valve extender

Quick release skewer Light

Tire air pressure :

Refer to the table below for the tire pressures in relation to the section marked on the tyre.

Tire section

mm max. pressure(bar) max. pressure(psi)

23 7,8 113

24 7,5 109

25 7,3 106

26 7,0 102

27 6,8 99

28 6,6 95

29 6,3 92

31 6,1 88

31 5,8 85

32 5,6 81

Do not remove the tire with any metal tool.

The minimum tire section is 23 mm and the maximum 32 mm.

For comfort and performance we recommend fitting 23 mm section tires on our 22.6 mm wide rims and 25 mm section tires on our 26 mm wide rims.

The original CORIMA braided rim tape is mandatory. If it is damaged it must be the replaced.

CORIMA clincher wheels are not compatible with tubeless conversion kits.

Only tires with inner tubes are acceptable (except latex inner tubes).

Co2 cartridge inflation systems are only allowed if their flow rate is adjustable. Instant inflation cartridges are prohibited with CORIMA wheels.

If the tire manufacturer indicates a pressure lower than that in the table, use this lower value.
