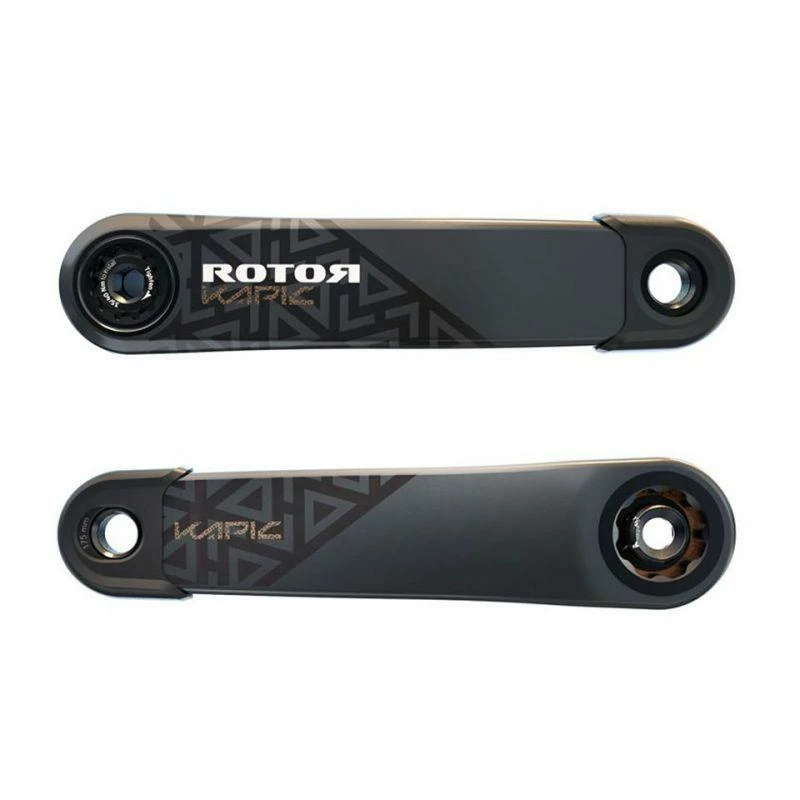

Rotor Bike Components Rotor Kapic Carbon Crank Arm

Before ordering, ask for availability.

Thank you.

Kapic Carbon is our lightest and stiffest crankset ever at 429g (175mm, 32t w/o BB) and was developed in response to the modern MTB rider’s cutting-edge bike design to withstand the most demanding riding conditions, with an incredible result in weight, strength and rigidity.

Thanks to the practical modular design, the crank arms can be adjusted to almost any frame standard and your personal preferences by using different axles and chainrings. BOOST or non-BOOST frame? Oval or round chainrings? Changing the chainrings quickly to adapt the translation to the terrain? No problem for the KAPIC crank!

Scope of delivery:

• Rotor Kapic carbon crank arm left and right

Not included

• Axle Kapic 30mm Standard/Boost/Super Boost

• Direct Mount (DM) oval/round chainrings

• Kapic Spacer Kit 30mm

• Bumper set

• Bottom bracket

Technical specifications:

• Weight: 429 g (175 mm, 32t without BB)

• Material: carbon

• Chainring Mount: Direct Mount

• Axle Ø: 30 mm (BB30)

• Chainline: 52mm Boost (135mm crankshaft) or 56.5mm Super Boost (144mm crankshaft)

• Q factor: 169.5 mm or 178.5 mm (depending on axle length)

• Crank arm length: 165mm / 170mm / 175mm

• Bottom bracket shell compatibility: BB30 / PF30 / BSA / BB89 / BB92

Details:

• Lightweight and rigid crank system with a modular structure

• Direct mount assembly of the chainrings

• Compatible with Direct Mount (DM) chainrings MTB

• Adjustment of oval ROTOR Q-Rings chainrings with an accuracy of 1°

• compatible with almost all bottom bracket standards

Compatible axes:

• ROTOR standard axis KAPIC 30 mm

• ROTOR BOOST axis KAPIC 30 mm

• ROTOR Super BOOST axis KAPIC 30 mm

also required spacers:

• ROTOR Spacer Kit KAPIC MTB

Compatible Bottom Brackets:

• ROTOR BSA30 bottom bracket cups

• ROTOR PRESS FIT 4130 bottom bracket ROAD/MTB BB86/89/92

• ROTOR BBPF30 bottom bracket shells PF 30, BB386 EVO and BBRight

Compatible Chainrings:

• ROTOR DM MTB Q-Rings Direct Mount oval chainring

• DM MTB No-Q-Rings Direct Mount Round Chainring

Direct mount:

All current ROTOR cranks from the ALDHU and VEGAST road series, the RHAWK, RRAPTOR and KAPIC MTB series and the INpower DM and 2INpower DM power meters use the Direct Mount system, which has been established in the mountain bike sector for years, to mount the chainrings. This enables easy chainring changes, direct traction on the axle and maximum flexibility when choosing the gear ratios and drive characteristics. In addition, the fine gearing between the crank and the chainring enables oval ROTOR Q-Rings chainrings to be adjusted to an accuracy of 1°
