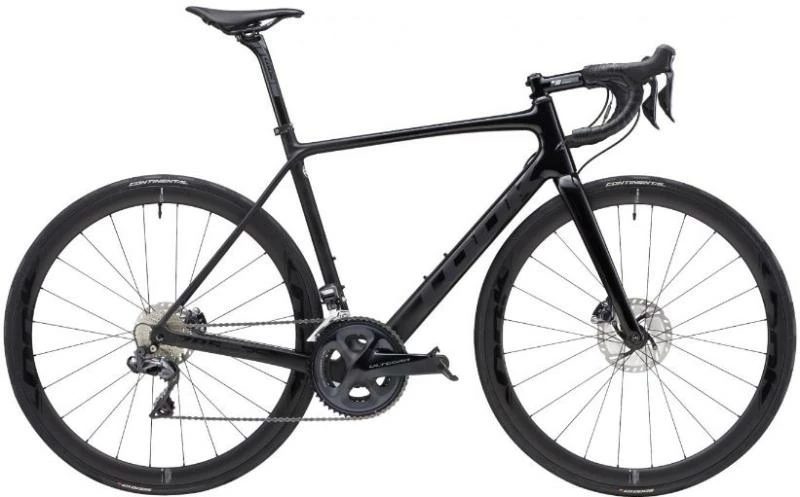

Look 785 Huez Disc Ultegra 2022

Delivery time : write us a request indicating desired size and color

This model is not available in the United States

* NON-CONTRACTUAL PICTURE

Technical Spec

Crankset Shimano Ultegra R 8000 ( Xs-s 170 / M-l 172,5 / Xl 175 )

Chainring Shimano Ultegra R 8000 52 X 36

Bb Bb Pf 86.5 / Token Ninja Tf 841

Chain Shimano Ultegra Hg 601

Cassette Shimano Ultegra R 8000 11×32

Shifters Shimano Ultegra

Derailleur Shimano Ultegra R 8000

Brakes Shimano Ultegra Disc Hydrau

Rotors Shimano Centerlock Rt 800 F : 160 Mm R : 140 Mm

Thru Axles Speed Release Ready 142×12 R / 100×12 F

Seatpost Look Ls2 Carbon 27.2 Mm 350 Mm

Saddle Look By San Marco Short Fit Dynamic Narrow Open Fit

Stem Look Ls2 Alloy ( Xs 90 / S 100 / M-l 110 / Xl 120 )

H-bar Look Ls2 Alloy ( Xs-s 40 / M-l 42 / Xl 44 )

Wheels Shimano Wh Rs 370 Tubeless

Tires Hutchinson Fusion 5 Tubeless Ready 700 X 25 ( Bike Delivered With Inner Tube )

Weight 8,2 Kgs* (Size M / Without Pedals) * Estimate

The 785 HUEZ DISC is a variation of the 785 HUEZ RS, from which it directly takes it shape. Made from the same mold, this version benefits from all the optimization research, but is constructed from a different blend of carbon fibers.

It is already an exceptional carbon frame, a great foundation, and as a bicycle as a whole, one which you may easily add personal upgrades to over time. Without a doubt, this bicycle will delight young competitors and passionate cyclists alike who are looking for an efficient, comfortable and versatile bicycle.

The frame weighs only 990 grams. The 785 HUEZ DISC has already made its entrance into the very light bicycle realm, but this is far from its only asset. Equipped with a 100% carbon tapered down tube and bottom bracket shell, pedal power is transferred to its maximum. Ultra-slim seat stays contribute to rider comfort, and a 27.2mm seatpost, strategically chosen for its flexibility properties, enhances that comfort even more.

The bicycle’s precise handling and stability are assured thanks to its rigid fork and head tube. This is especially important for a bicycle destined for the mountains because the fact that it climbs well is not enough. It must also be and feel safe and reliable when descending. In the Tour de France, the descents down the towering cols can also make a difference.

Light, rigid, stable, and comfortable, the 785 HUEZ DISC is a phenomenally versatile bicycle. It not only climbs well in the mountains, but is also highly effective on the flats, long distance rides in rolling hills, such as «Gran Fondos», and great for anything short and fast, like criteriums.

NANO LAYER CONSTRUCTION

With over 30 years of carbon technology know-how, skill and expertise, LOOK engineers, in their manufacturing facility, ultra-precisely define the position and orientation of each of the thin layers of carbon used to create their tubes.

OPTIMIZED INERTIA SECTION

To create the 785 HUEZ DISC, we began by studying and improving the shape of all of the tubes. Optimizing the shape requires defining the design that provides the maximum inertia for each tube, that is to say, to choose the optimal length, size and shape that produces the best stiffness-to-weight ratio.

We therefore, opted for a sleek and sophisticated design based on precise research, entirely focused upon the search for efficiency and performed by our engineers, to create an ultralight bicycle with the best possible characteristics. A tube sidewall thickness of 0.6 mm was ultimately chosen.

HIGH MODULUS CARBON

Once the optimal length, size and tube thickness have been determined, the next step is to establish the ideal carbon composition to achieve our objective, the creation of the best bicycle made for climbing. To accomplish this, the recipe is similar to that of gastronomic cuisine. To make the best dish, one needs ingredients of the highest quality. LOOK has therefore selected only superior carbon fibers, including the finest of the high modulus, to create the HUEZ 785. We have chosen four different types of carbon, each one selected for its outstanding quality in its category.
