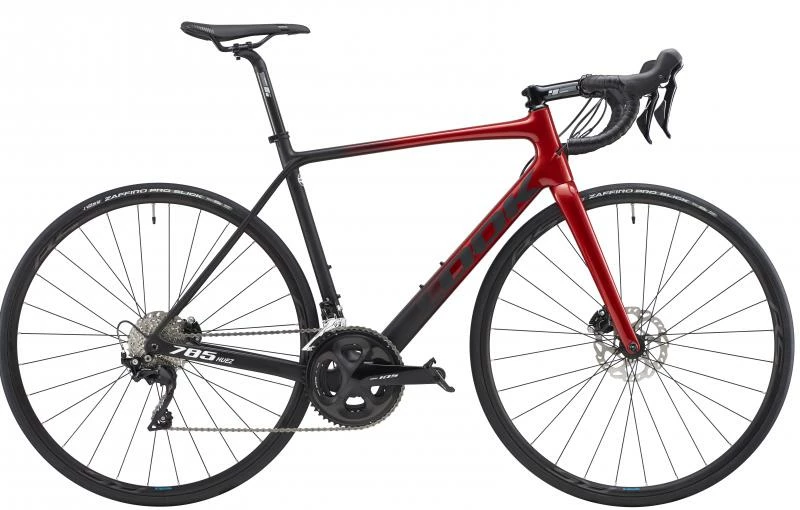

Look 785 Huez Disc Shimano 105, 2022

Delivery time : write us a request indicating desired size and color

* NON-CONTRACTUAL PICTURE

This model is not available in the United States

Technical Spec :

Frame UD Carbon-finish High Modulus carbon frame. Ultra Light High Modulus carbon fork. Ultra light

Crankset Shimano105 ( Xs-s 170 / M-l 172,5 / Xl 175 )

Chainring Shimano 105 52 X 36

Bb Bb Pf 86.5 / Token Ninja Tf 841

Chain Shimano 105

Cassette Shimano 105

Shifters Shimano 105

Derailleur Shimano 105

Brakes Shimano 105

Rotors Shimano Centerlock Rt 800 F : 160 Mm R : 140 Mm

Thru Axle Speed Release Ready 142×12 R / 100×12 F

Seatpost Look 27.2 Mm 350 Mm

Saddle Look Short Fit Dynamic Narrow Open Fit

Stem Look Ls1 Alloy Super Light ( Xs 90 / S 100 / M-l 110 / Xl 120 )

H-bar Look Ls2 Alloy ( Xs-s 40 / M-l 42 / Xl 44 )

Wheels Shimano Rs171

Tires Vittoria Zaffiro

Weight 8,5 Kgs * (Size M / Without Pedals) * Estimate

The 785 HUEZ DISC is a variation of the 785 HUEZ RS, from which it directly takes it shape. Made from the same mold, this version benefits from all the optimization research, but is constructed from a different blend of carbon fibers.

It is already an exceptional carbon frame, a great foundation, and as a bicycle as a whole, one which you may easily add personal upgrades to over time. Without a doubt, this bicycle will delight young competitors and passionate cyclists alike who are looking for an efficient, comfortable and versatile bicycle.

The frame weighs only 990 grams. The 785 HUEZ DISC has already made its entrance into the very light bicycle realm, but this is far from its only asset. Equipped with a 100% carbon tapered down tube and bottom bracket shell, pedal power is transferred to its maximum. Ultra-slim seat stays contribute to rider comfort, and a 27.2mm seatpost, strategically chosen for its flexibility properties, enhances that comfort even more.

The bicycle’s precise handling and stability are assured thanks to its rigid fork and head tube. This is especially important for a bicycle destined for the mountains because the fact that it climbs well is not enough. It must also be and feel safe and reliable when descending. In the Tour de France, the descents down the towering cols can also make a difference.

Light, rigid, stable, and comfortable, the 785 HUEZ DISC is a phenomenally versatile bicycle. It not only climbs well in the mountains, but is also highly effective on the flats, long distance rides in rolling hills, such as «Gran Fondos», and great for anything short and fast, like criteriums.

NANO LAYER CONSTRUCTION

With over 30 years of carbon technology know-how, skill and expertise, LOOK engineers, in their manufacturing facility, ultra-precisely define the position and orientation of each of the thin layers of carbon used to create their tubes.

OPTIMIZED INERTIA SECTION

To create the 785 HUEZ DISC, we began by studying and improving the shape of all of the tubes. Optimizing the shape requires defining the design that provides the maximum inertia for each tube, that is to say, to choose the optimal length, size and shape that produces the best stiffness-to-weight ratio.

We therefore, opted for a sleek and sophisticated design based on precise research, entirely focused upon the search for efficiency and performed by our engineers, to create an ultralight bicycle with the best possible characteristics. A tube sidewall thickness of 0.6 mm was ultimately chosen.

HIGH MODULUS CARBON

Once the optimal length, size and tube thickness have been determined, the next step is to establish the ideal carbon composition to achieve our objective, the creation of the best bicycle made for climbing. To accomplish this, the recipe is similar to that of gastronomic cuisine. To make the best dish, one needs ingredients of the highest quality. LOOK has therefore selected only superior carbon fibers, including the finest of the high modulus, to create the HUEZ 785. We have chosen four different types of carbon, each one selected for its outstanding quality in its category.
