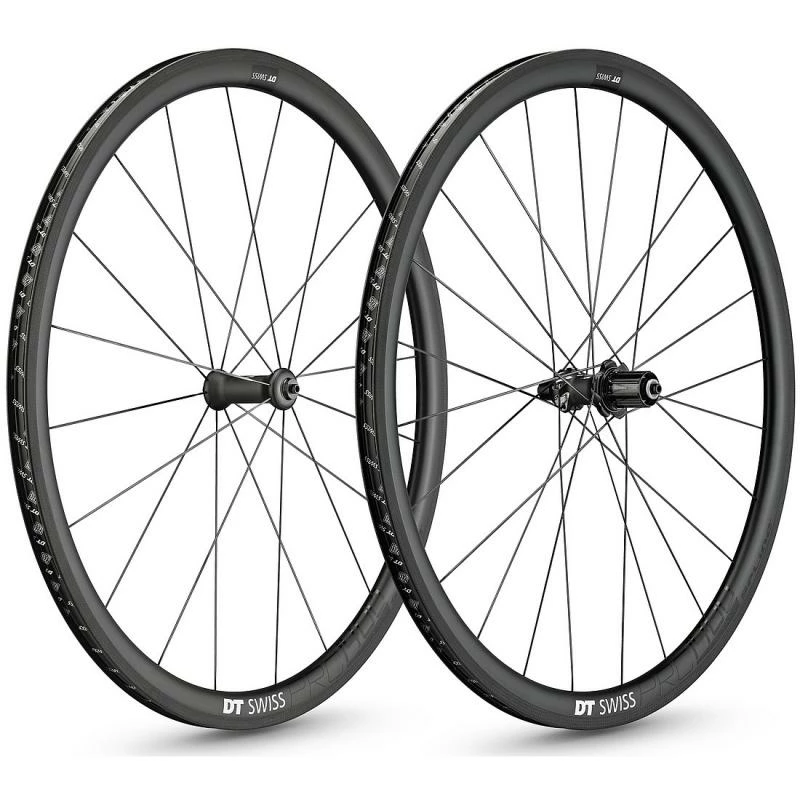

Dt-swiss DT Swiss PRC 1400 Spline 35

Please, ask for availability before ordering.

Thank you.

The DT Swiss PRC 1400 SPLINE 65 was developed together with professional racing teams, tested in the wind tunnel and during the Tour de France. Perfect aerodynamics, good performance in crosswind and top-quality braking performance were the key points. Smooth straightpull SPLINE hubs with Ratchet freehub system as well as the wide tire and tubeless compatible rims provide excellent rolling performance and comfort.

Equipped with 35 mm high carbon rims, DT aerolite® and DT aero comp® spokes, rim brake surface and SPLINE hubs with Ratchet freehub system. For 9×100 mm quick release front and 10×130 mm quick release rear.

AERO+ Technology

The Aero+ technology has been developed in cooperation with the aerodynamic partner Swiss Side to optimize the new Endurance wheelsets.

SPLINE® Technology

With straight pull spokes and the use of specific lacing, superlight hubs as well as high end rims featuring key DT Swiss technology, SPLINE® wheels make for a perfect training and racing partner.

Ratchet System

This patented freewheel system uses precision ratchets, featuring extremely high load capacity and reliability. The no tool concept allows for an easy execution of routine maintenance.

Straightpull Technology

The term Straightpull refers to spokes with no bend at the head. This design allows for an ideal strength to weight ratio when compared to conventional spokes. Due to their more precise alignment and direct trajectory, straight-pull spoke technology creates a stiffer, more responsive wheel.

DT Pro Lock® Technology

A patented liquid injected into the nipple thread allows for extremely durable wheel builds.

Maximum system weight: 100kg.

Material: rim: carbon

spokes: stainless steel

nipples: aluminium

Weight: approx. 1486 gram (658 g front / 828 g rear, manufacturer information)

Rim: Performance Carbon clincher, UD-finish, tubeless ready

Rim height: 35 mm

external/internal rim width: 25 mm / 18 mm

E.T.R.T.O.: 18-622

Spokes: DT aerolite® / DT aero comp®

Nipples: DT Pro Lock® aluminium

Spokes number: front: 20 radial

rear: 24 (2x crossed)

Hub axle system: front: 9×100 mm QR

rear: 10×130 mm QR

Fitting type of tire: Clincher, tubeless ready

Fitting tire dimension: 700c x 23-60 | 28 x 0.9-2.35″

Maximum tire pressure: 3.2 – 9 bar (46 – 131 psi)

Purpose: Road, Climbing, Race, Triathlon, Time Trial

hub: DT Swiss SPLINE®

Fitting for shifting: Shimano 11-speed

Freehub: DT Swiss 36 T Ratchet freewheel system

Max. permissible total weight

(rider + bike): 100 kg

Color: black

Included in delivery: RWS quick release, tubeless ready tape, tubeless valves, brake pads for carbon
